Variable Speed Drives
Vesta Group’s preferred products are the Danfoss VLT range, specifically designed for HVAC applications.
Variable speed drives (VSDs) are designed to vary the speed of a normally fixed speed motor. In HVAC applications, they are used primarily to control fans and pumps. If your Cooling Tower fan is not required to run at constant full speed or full time, introducing a VSD to control these requirements, can increase the efficiency of the unit and drastically reduce your energy costs.
FC101 VLT HVAC Basic Drive
This drive is the most compact unit in its class designed for efficient control of fans and pumps int HVAC applications, don’t let its name fool you, this is no Basic drive.
Integrated DC coils reduce harmonics to an absolute minimum and the Automatic Energy Optimizer saves 15-25% energy from the second you turn the it on.
For more information on this product, please feel free to contact us.
Key Features:
- EMC compliance according to AS 61800-3:2005, category C1 (cable length to 10metres) – the only one in its category.
- Designed to operate up to an ambient temperature of 45degrees Celsius without derating
- Best in its class for harmonic performance
- Quick and easy programming with full English Numeric display, upload and download parameters using the removable LCP.
- BACnet mstp, FC Protocol, N2 Metasys, FLN Apogee and Modbus RTU built in as standard
- Available in a range of sizes from .75kw (2.2amp) to 90kw (177amp)
- Available in IP20 and IP54 rated protection
Fire override mode (1 setting only)

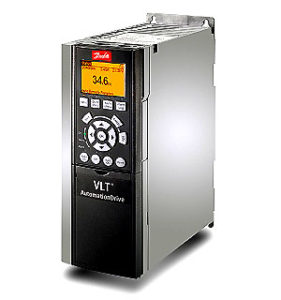

FC102 VLT HVAC Drive
This drive is the most compact unit in its class designed for all HVAC applications. A full featured, HVAC dedicated drive with built-in intelligence, offering a large variety of functions to meet the HVAC requirements. Perfectly matched to pumps, fans and compressors.
Integrated DC coils reduce harmonics to an absolute minimum and the Automatic Energy Optimizer saves 15-25% energy from the second you turn the it on.
For more information on this product, please feel free to contact us.
Key Features:
- EMC compliance according to AS 61800-3:2005, category C1 (cable length to 50metres)
- Designed to operate up to an ambient temperature of 50degrees Celsius without derating
- BACnet mstp, FC Protocol, N2 Metasys, FLN Apogee and Modbus RTU embedded and further option cards available.

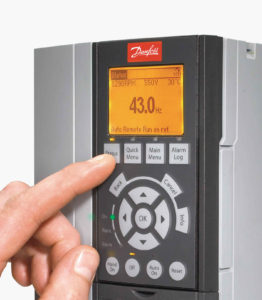

- Quick and easy programming with full English Numeric display, upload and download parameters using the large LCP display.
- USB plug and play connection for easy to use PC software tools
- Available in sizes ranging from 1.1kw to 1000kw
- Available in protection ratings from IP20 to IP66
- Fire override mode (multiple settings)
- Suited for outdoor applications (with additional protection measures to maintain warranty)
- There are many, many options and accessories suitable to this drive.
